Fixed Line System

Fixed Line System

KARAM provides a vast range of Permanent Horizontal and Vertical Anchorage Lines. These engineered systems are corrosion resistant and can be fixed on various structures to provide safe anchorage for an extended period of time.

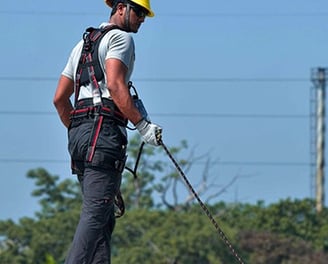

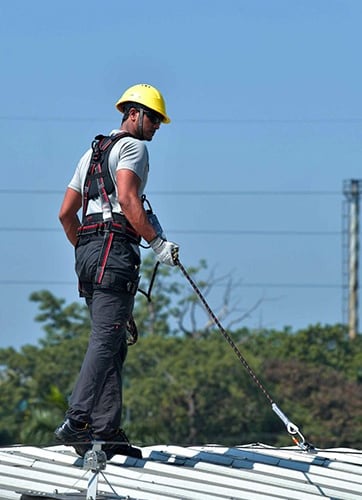

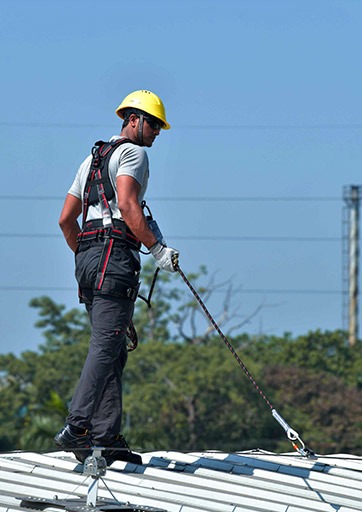

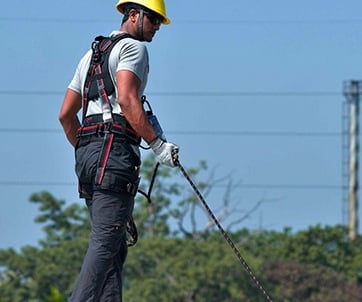

PERMANENT HORIZONTAL LIFELINE

Conforming to EN 795:2012 Type C and TS16415:2013

Systems can be used along crane rail runways, loading bays and docks, conveyors, rooftops, pipe racks, bridges and many other applications.

Horizontal Lifeline Systems

Applicable standard: EN795:2012

This European Standard is intended to be used as a standard guideline for Horizontal Lifeline Systems fall protection.

The scope and the requirements are based on the philosophy that anchor devices are rated to sustain the maximum dynamic force generated in a fall from a height by the mass of one person including any equipment carried. The static strength tests are based on a minimum factor of safety of two to allow for foreseeable misuse of equipment.

A static load of 12 kN is required to be held for a minimum of three minutes without failure.

A dynamic performance and integrity test, where a shock load (9 kN at mobile anchor point) is created by using a test mass of 100 kgs freely falling from a specific height connected to a synthetic lanyard. The Lifeline is further subjected to a static pull of 300 kgs for a period of 3 minutes to ensure that the same Lifeline can be used for rescue after a fall.

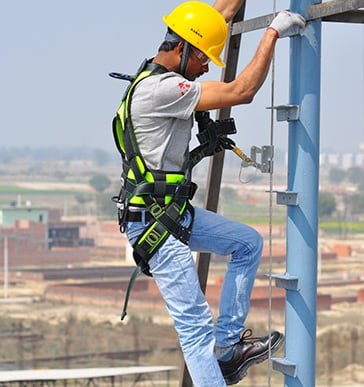

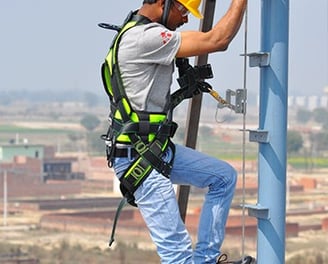

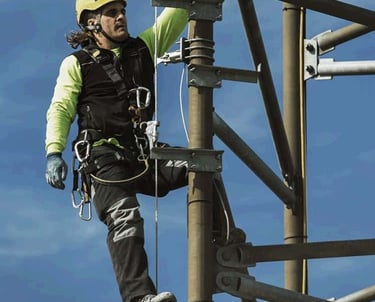

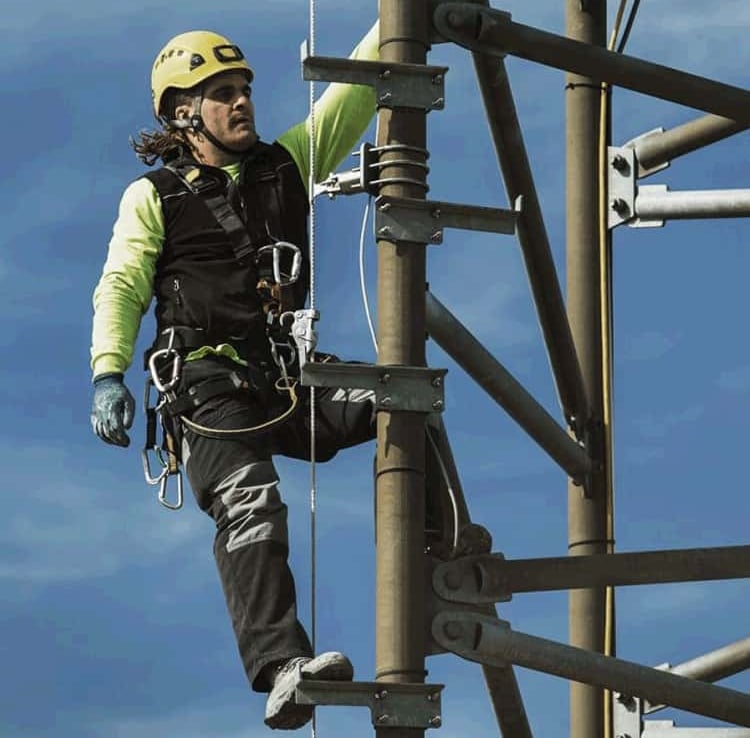

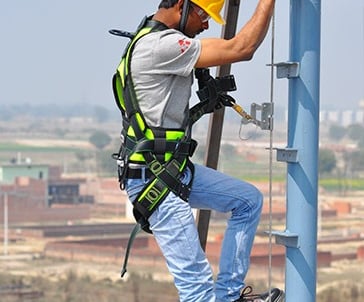

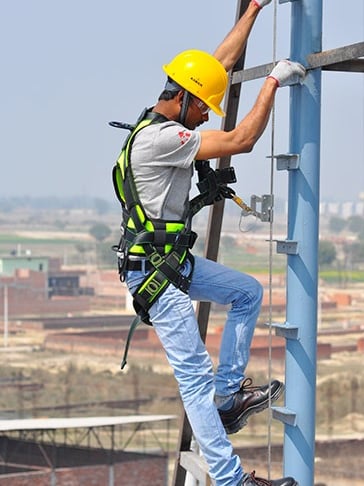

Vertical Life line System

The Lifelines can be of single span of different lengths (e.g. truck loading /unloading activities), or long Lifelines with multiple spans (e.g. installed on roof). The multi span Lifelines may also have a corner. All configurations and lengths may not be possible to test, hence EN 795 propose dynamic and integrity test where the manufacturer is required to predict the forces at extremity and displacement in the cable in set configurations of the Lifeline. The forces predicted and the displacement of the cable measured during tests should be within a tolerance of 20%.
